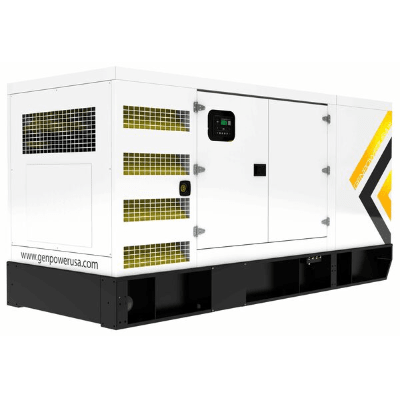

MY CART 200kW Diesel Generator Rental
Multiquip DCA220SSIU Diesel Generator Rental
CHECK OUT NOW
The DCA220SSJU4F2 offers a prime rating of 176 kW (220 kVA) and a standby rating of 194 kW (242 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. Equipped with a Tier 4 certified John Deere diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. The DCA220SSJU4F2 is manufactured within a powder-coated, weather resistant, 110% fluid contained steel housing that allows a substantially low operating noise level of 69 dB(A). It features an auto/start/stop digital controller that allows the generator to start from a remote location. Comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, AC load percentage, engine gauges and much more.
Call (415) 644-5792
| Prime Rating | 176 kW | 220 kVA |
| Standby Rating | 194 kW | 242 kVA |
| Generator RPM | 1800 | |
| Voltage – Three Phase | 208, 220, 240, 416, 440, 460, 480V Reconnectable | |
| Voltage – Single Phase | 120, 127, 139, 240, 254, 277V Adjustable | |
| Generator Design | Revolving field, Self-ventilated, Drip-proof, Single bearing | |
| Voltage Regulation (No Load to Full Load) | ±0.5 % | |
| Power Factor | 0.8 | |
| Armature Connection | Star with Neutral | |
| Excitation | Brushless with AVR | |
| No. Poles | 4 | |
| Frequency | 50 / 60 Hz | |
| Frequency Regulation (steady state load) | ±0.25 % | |
| Sound Level (Full Load at 23 ft.) | 69 dB(A) | |
| Make/Model | John Deere 6068HFG06 | |
| Emissions | EPA Tier 4 Certified | |
| Starting System | Electric | |
| Design | 4-cycle, water cooled, direct injection, turbocharged. Charged Air Cooled. EGR, DOC and SCR | |
| Gross Engine Power Output | 323 bhp | 241 kW |
| Fuel Tank Capacity | 319 gal | 1210 L |
| Fuel Consumption: | ||
| Full load | 12.0 gph | 45.5 lph |
| 3/4 load | 9.4 gph | 35.5 lph |
| 1/2 load | 6.9 gph | 26.1 lph |
| 1/4 load | 4.6 gph | 17.3 lph |
| DEF Tank Capacity | 29.7 gal | 112.4L |
| Coolant Capacity | 12.9 gal | 48.7 L |
| Oil Capacity | 8.58 gal | 32.5 L |
| Battery | 12V 150Ah x1 | |
| Gross Vehicle Weight Rating (GVWR) | 16,000 lb | 7,257 kg |
| Gross Axle Weight Rating (GAWR) (ea.) | 8,000 lb | 3,628 kg |
| Coupler Rating | 3″ Pintle Eye (25,000 lb) 2-5/16″ Ball Coupler (20,000 lb) |
|
| Tire Size | ST235 / 85R16 LR-G | |
| Tire Load Rating (ea.) | 4,400 lb | 1,996 kg |
| Wheel Bolt Pattern | 8 Lug | |
| Fits MQ Power Generator Models | DCA150SSJU4F2 DCA180SSJU4F DCA220SSJU4F2 |
|
| Overall Length | 212.9 in | 5,408 mm |
| Overall Width | 89 in | 2,261 mm |
| Overall Height | 26.58 in | 675 mm |
| Operating Weight | ||
| Without Fuel | 2,404 lb | 1,596 kg |
